Tuesday 25 October 2016

Dashboard Design V3, Door touch up

So I used the new dashboard layout over this summer and it worked well, feeling much more like a normal car. So I'm happy to keep the design, just a few more tweaks to be done to complete it and finish it properly.

1st was to strip off the fabric that was fitted before the summer to the new dashboard, although it looked great it was always going to have to come off. It came off surprisingly easy, luckily I guess the glue was poor!

Following this I then had to start thinking about fitting some dashboard vents and a small cubby hole to hold some bits. My first thoughts were square vents look a bit dated nowadays so I didn't want to go that route. So I decided the easiest was to cut some vents and holes out of a production dashboard, giving perfect circles.

So I went to a scrap yard and got some with vents and also some nice round dial surrounds. all for £20. Next was to cut some holes into the dashboard to get ready to fit them.


Slowly I made the holes bigger and got both sets of vents into position. Making sure it was clear behind to fit the vent and to feed the tube to them. I then filled around them and slowly smoothed them off.


Still more work to do on smoothing it off but getting there in that area. Next I want to remove the top of the dashboard around the dials and replace it with a thinner  piece of plastic which will be a perfect curve.

Off the back of that I can make the dial surround piece.

Whilst doing all this I will also be redoing the door cards and also vanity panels to cover the holes at the top of the door. Now the paint on these doors is just a black satin paint, so nice and easy to touch up. I started by sanding all the high points and rough areas so they were flat and smooth. The doors weren't too bad but I wanted to make them nicer.



Also where id stuck some foam over bits for the IVA, the spray garage didn't remove this and sprayed over the top so I felt it looked messy so I started to strip that off as well.


The door looks a million times better already and is nice and smooth to the touch as well. In the photo below its not quite dry hence the shiny wet bits.



Wednesday 19 October 2016

Long Overdue update

So I haven't posted since the beginning of the summer when the car just went back on the road. I guess the reason for that is I've been using it!

I managed to cover just over 2000 miles this summer with only a couple of minor issues. The biggest being I snapped my throttle cable! Luckily two roads from home so I crawled back on idle in 1st, then 2nd. Replaced the cable and away we go, ill be keeping an eye on that!

The plans for the winter work are below:

* Dashboard design works - so refine, add vents and get the finish to the next level as well. Complete the dial surrounds.

* Tidy up new wiring added for the radio and other bits behind the dashboard

* Silicone fill bodywork to chassis gaps around the front of the cockpit / wheel arches. This will lower the noise a lot, its not super loud at the moment but it will lower it further.

* Tidy up the doors and door cards to match the finish of the rest of the interior

* Repair a bit of fibreglass shell and strengthen others, some weaknesses have shown from the use of the car

* Adjust handbrake so it has a stronger hold

* Try and remove all knocking noises - there arent alot, they are just annoying

* Work on the final set of rear lights and also decide on the rear wing

* Get the rear clam to fit better. this is by far the worse fitting panel, the doors fit pretty well

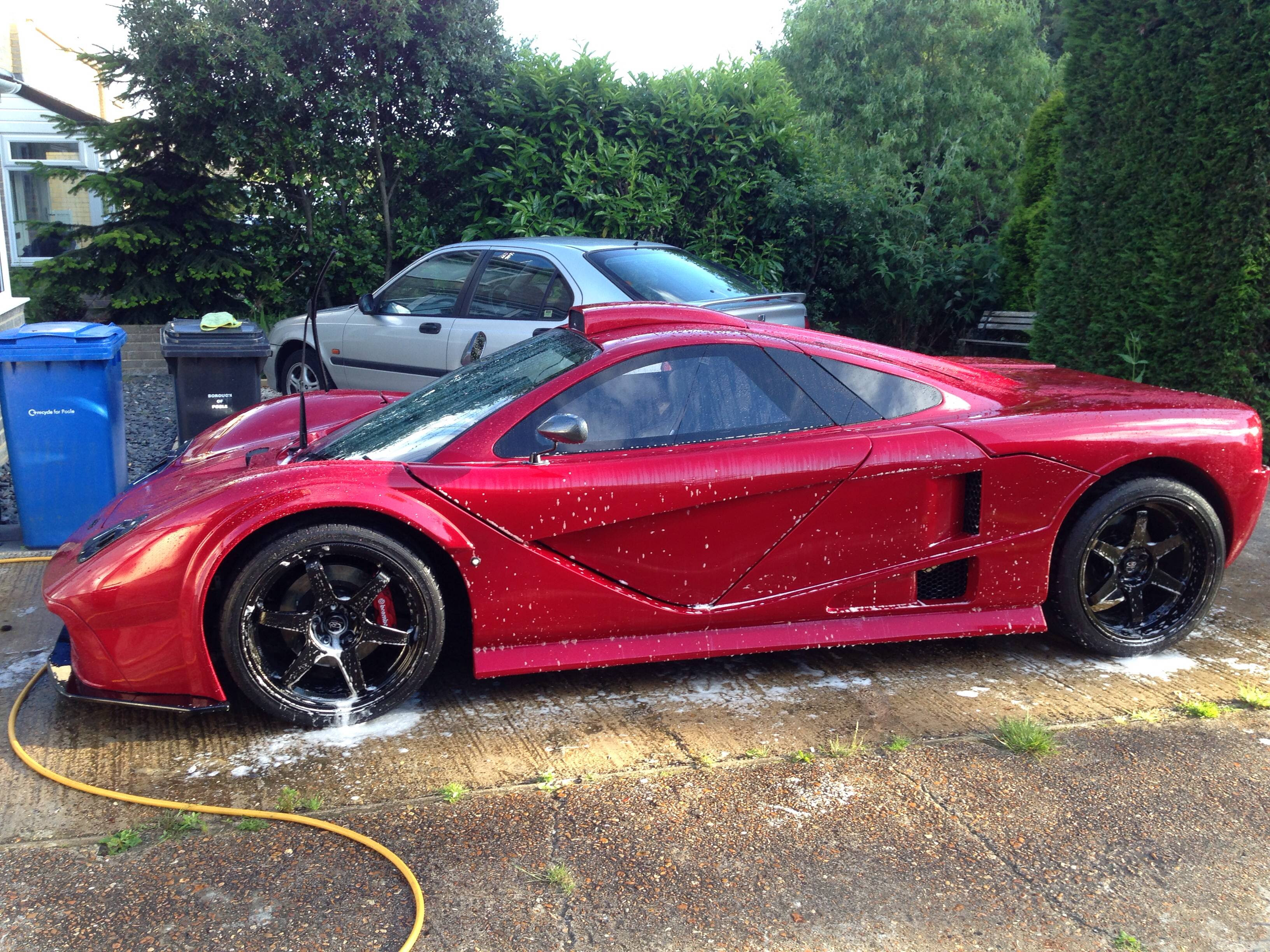

Its a fair amount to do, so I doubt all will get it all done in the time frame before its back on the road as a lot of this is what will become the final versions. Below are some images from this year;
